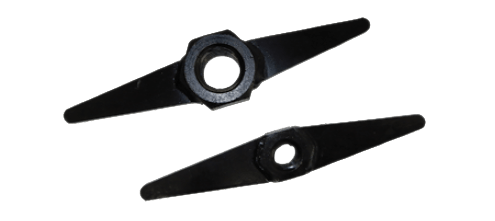

HANDLED JACK NUTS
Handled Jack Nut Specifications
PART NUMBER
DESCRIPTION
COMPATIBLE PRODUCTS
DIMENSIONS (L x W x H)
HJN-1
Handled Jack Nut for 1" threaded rod
VH-10, VH-20, VH-36, RH-4, RH-12, RH-24, RH-36
10" x 2" x 1"
HJN-2
Handled Jack Nut for 1-1/2" acme rod
SSVH-36, RH-48, SSRH
11" x 2.5" x 1.5"

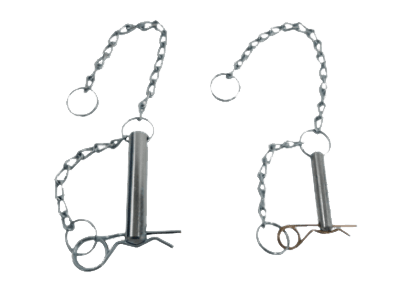

POSITIVE LOCK PINS
Positive Lock Pin Specifications
PART NUMBER
DESCRIPTION
PLPRS
1/2" Positive Locking Pin for all Collapsible and Solid Stands
PLPSS
3/4" Positive Locking Pin for all Superstand
Positive Locking Pins must be engaged at all times when the stand is in use for any safety ratings/warranty to apply.
Refer to inside front cover for proper use.

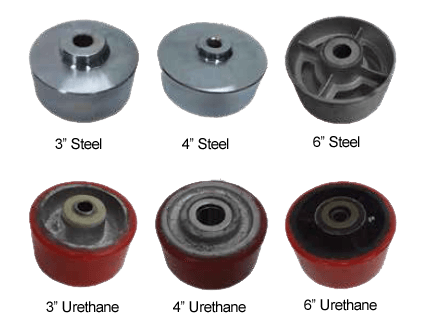

ROLLERHEAD WHEELS
Rollerhead Wheel Specifications
PART NUMBER
SIZE
COMPATIBLE PRODUCTS
SHIPPING WEIGHT
SWH-3
3" Dia. x 2" W
RH-12, RH-4
2.50 LBS
SWH-4
4" Dia. x 2" W
RH-12, RH-4
4.75 LBS
SWH-6
6" Dia. x 3" W
RH-12, RH-4
10.25 LBS
UWH-3
3" Dia. x 1.25" W
RH-12, RH-4
1.50 LBS
UWH-4
4" Dia. x 2" W
RH-12, RH-4
2.50 LBS
UWH-6
6" Dia. x 3" W
RH-12, RH-4
9.75 LBS
SOLID AND COLLAPSIBLE INNER SLEEVES
Solid and Collapsible Inner Sleeve Specifications
PART NUMBER
DESCRIPTION
DIMENSIONS (L x W x H)
COMPATIBLE PRODUCTS
SIS
11" long round Inner Sleeve
2" x 2" x 11"
HCPS-15, HSPS-15
MIS
17-1/2" long round Inner Sleeve
2" x 2" x 18"
HCPS-22, HSPS-24
LIS
25-1/2" long round Inner Sleeve
2" x 2" x 26"
HCPS-30, HSPS-30
XLIS
31" long round Inner Sleeve
2" x 2" x 31"
HCPS-36, HSPS-36

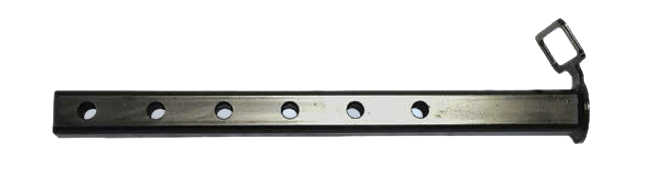

SUPER STAND INNER SLEEVES
Super Stand Inner Sleeve Specifications
PART NUMBER
DESCRIPTION
DIMENSIONS (L x W x H)
COMPATIBLE PRODUCTS
SSINS
11-1/2" long square Inner Sleeve
11" x 5" x 6"
SS12
SSINM
17-1/2" long square Inner Sleeve
18" x 5" x 6"
SS22
SSINL
24" long square Inner Sleeve
24" x 5" x 6"
SS30

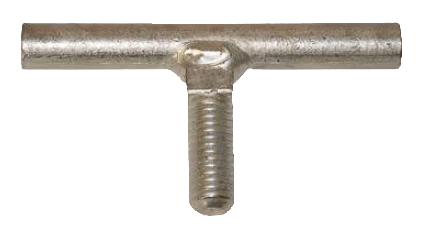

T-HANDLE SET SCREWS
T-Handle Set Screw Specifications
PART NUMBER
DESCRIPTION
THSS
T-Handle Set Screw
T-Handle Set Screw is for Collapsible and Solid Stands only and is cadmium plated for rust protection.
Please refer to inside front cover for proper use.
