Rollerhead Specifications
PART NUMBER
DESCRIPTION
PIPE SIZE
DIMENSIONS (L x W x H)
Compatible with all collapsible (HCPS) and solid (HSPS) pipestands.
RH-4/ST
4 wheeled Rollerhead with 3" steel wheels. Max load of 2,000 lbs
1" to 12"
12" x 3" x 18"
RH-4/UR
4 wheeled Rollerhead with 3" urethane wheels. Max load of 2,000 lbs
1" to 12"
12" x 3" x 18"
PART NUMBER
DESCRIPTION
PIPE SIZE
DIMENSIONS (L x W x H)
Compatible with all collapsible (HCPS) and solid (HSPS) pipestands.
RH-12/ST
2 wheeled Rollerhead with 3" steel wheels. Max load of 2,000 lbs
1/2" to 12"
11" x 3" x 16"
RH-12/ST
2 wheeled Rollerhead with 3" urethane wheels. Max load of 2,000 lbs
1/2" to 12"
11" x 3" x 16"
PART NUMBER
DESCRIPTION
PIPE SIZE
DIMENSIONS (L x W x H)
Compatible with all collapsible (HCPS) and solid (HSPS) pipestands.
RH-24/ST
2 wheeled Rollerhead with 4" steel wheels. Max load of 2,500 lbs
1" to 24"
14" x 3" x 17"
RH-24/UR
2 wheeled Rollerhead with 4" urethane wheels. Max load of 1,600 lbs
1" to 24"
14" x 3" x 17"
PART NUMBER
DESCRIPTION
PIPE SIZE
DIMENSIONS (L x W x H)
Compatible with all Collapsible (HCPS) & Solid (HSPS) Pipe Stands and SH-36/GT (36" Sawhorse with guide tubes).
RH-36/ST
2 wheeled Rollerhead with 6" steel wheels. Max load of 5,000 lbs
2" to 36"
28" x 4" x 8"
RH-36/UR
2 wheeled Rollerhead with 6" urethane wheels. Max load of 4,000 lbs
2" to 36"
28" x 4" x 8"
Compatible with all Superstands (SS) and SH-48/GT (48" Sawhorse with guide tubes).
RH-48/ST
2 wheeled Rollerhead with 6" steel wheels. Max load of 5,000 lbs
2" to 48"
36" x 5" x 9"
RH-48/UR
2 wheeled Rollerhead with 6" urethane wheels. Max load of 4,000 lbs
2" to 48"
36" x 5" x 9"
PART NUMBER
DESCRIPTION
PIPE SIZE
DIMENSIONS (L x W x H)
Compatible with super stands (SS)

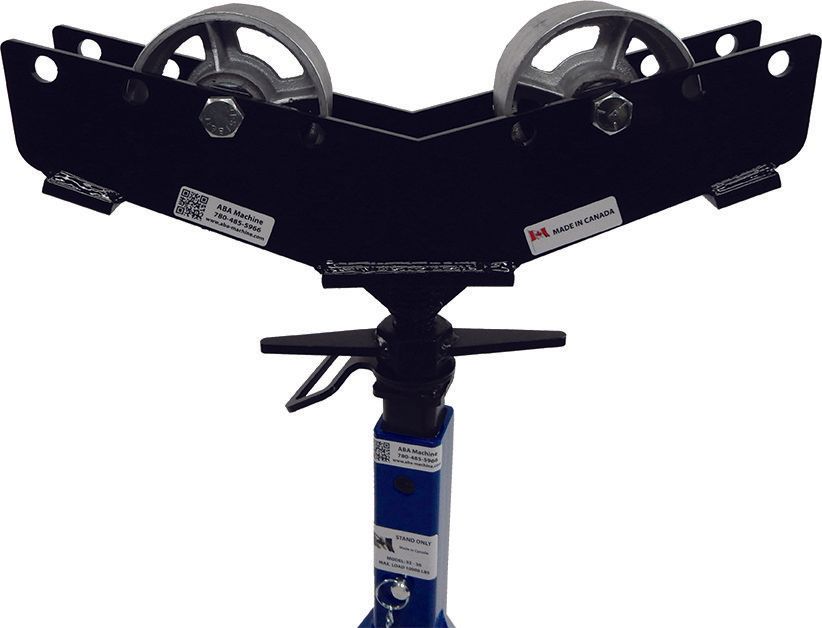

SSRH/ST
2 wheeled Rollerhead with 6" steel wheels. Max load of 5,000 lbs
2" to 32"
24" x 5" x 19"
SSRH/UR
2 wheeled Rollerhead with 6" urethane wheels. Max load of 4,000 lbs
2" to 32"
24" x 5" x 19"
** Heavy duty steel wheels are available by custom order to raise max weight rating to 10,000 lbs when: - RH-48 MUST be used in TWO Superstands instead of a Sawhorse for higher weight rating to apply.
