WEDGES
WEDGES

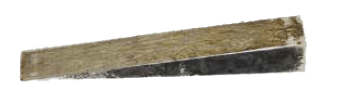

CARBON STEEL WEDGES
Carbon Steel Wedge Specifications
Carbon Steel Wedges are made from commercially hardened QT100 wear plate.
PART NUMBER
DIMENSIONS
(L x W x H)
CSW1
3" x 1" x 1/4"
CSW2
6" x 1" x 1/2"
CSW3
6" x 1" x 3/4"
CSW4
6" x 1" x 1"
CSW5
10" x 1-1/2" x 1-1/2"
The above sizes are stocked items. All other sizes are custom and are available in QT100 and stainless steel. Contact us for more info.
CARBON STEEL FITTER WEDGES
Carbon Steel Fitter Wedge Specifications
Carbon Steel Fitter Wedges are through hardened to 46-48 RC with a cadmium plating for rust protection.
PART NUMBER
DIMENSIONS
(L x W x H)
CSFW6
4" x 1-1/4" x 1/4" with hole
CSFW2
8" x 3/4" x 1/4" with hole
CSFW4
8" x 1-1/2" x 1/4" with hole

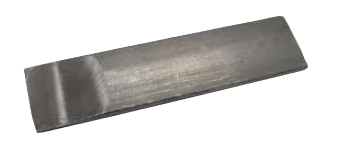

STAINLESS STEEL FITTER WEDGES
Stainless Steel Fitter Wedge Specifications
PART NUMBER
DIMENSIONS
(L x W x H)
SSFW6
4" x 1-1/2" x 1/4" with hole
SSFW2
6" x 3/4" x 1/4" with hole
SSFW4
6" x 1-1/2" x 1/4" with hole

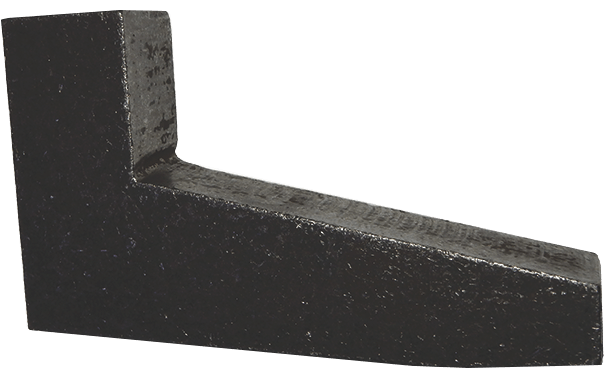

HI-LOW WEDGES
The Hi-Low wedge can be used with all external cage clamps. These wedges are placed between the pipe and the clamp and driven into place to eliminate Hi-Low. The Hi-Low wedges can accommodate all major manufacturer's cage clamps. These wedges are precision cut for accuracy and made from hot rolled QT100 Plate for durability.
